  • YG-1 56576TN DIA 9/32 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute Standard Helix Carbide TiN Single End Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Carbide End Mill

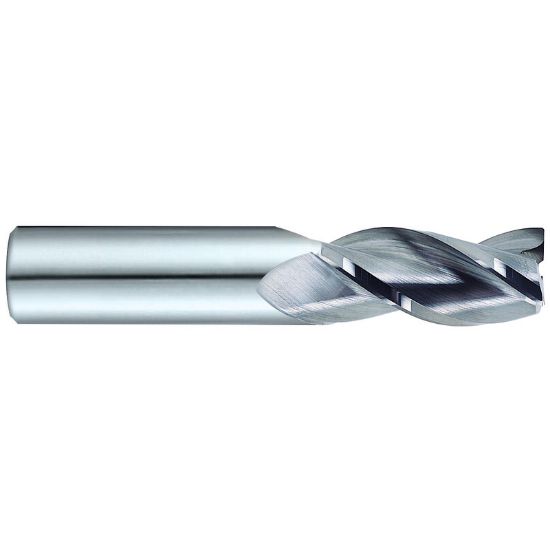

Picture of YG-1 56576TN DIA 9/32 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute Standard Helix Carbide TiN Single End Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Carbide End Mill

YG-1 56576TN DIA 9/32 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute Standard Helix Carbide TiN Single End Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56576TN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA No
Package Size 1
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0150 0.38MM - 0.0200 0.51MM
Length Type Standard
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutter Dia 0.2812 7.14MM - 9/32
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 2.5000 63.50MM
Helix Angle 35°
Single/Double End Single End
Machine Side Connection Size 0.3125 7.94MM
End Of Tool Shape Corner Radius
Flutes/Inserts 3
Length Of Cut 0.8125 20.64MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
