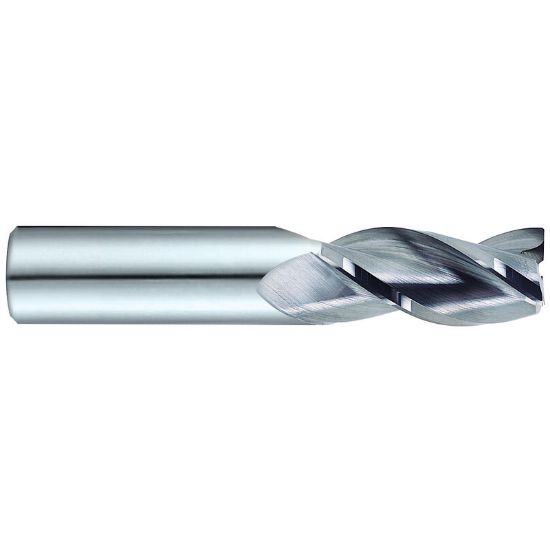

YG-1 56576TC DIA 9/32 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56576TC
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Profile Milling, Copy Milling, Slot Milling, Side Milling
Coating TiCN
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Flutes/Inserts 3
Length Of Cut 0.8125 20.64MM
Cutter Style Carbide Bull Nose Finisher
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Helix Angle 35°
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.2812 7.14MM - 9/32
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Corner Radius 0.0150 0.38MM - 0.0200 0.51MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
