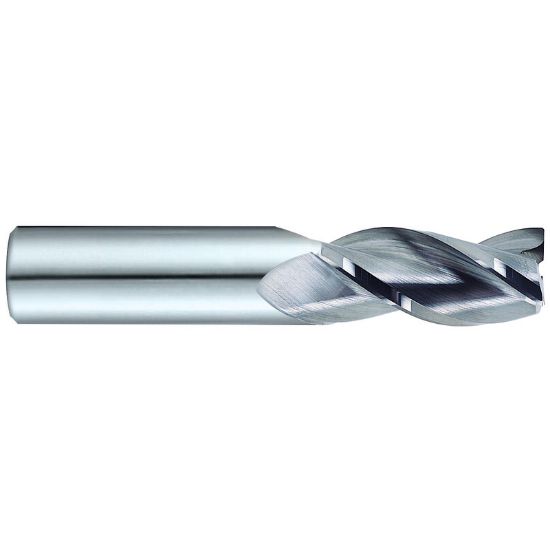

YG-1 56573 DIA 1/4 SH 0.2500 LOC 0.7500 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56573
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0150 0.38MM - 0.0200 0.51MM
Length Type Standard
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 0.7500 19.05MM
Helix Angle 35°
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
