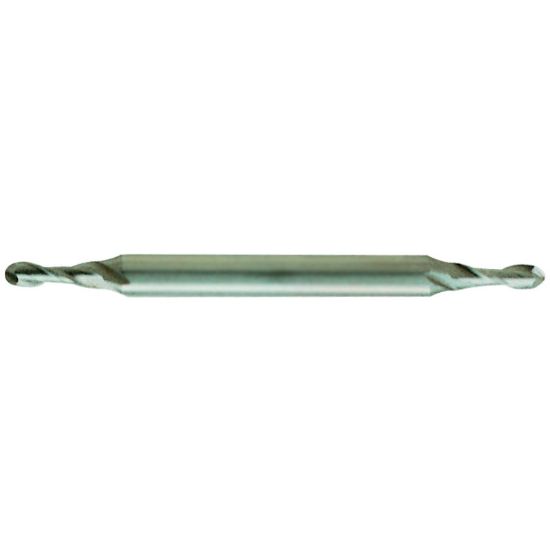

YG-1 56272CC DIA 3/16 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56272CC
Delivery date: 3-5 days
$26.33

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Shipping State Illinois
Performance Rating General Performance
Coating TiCN
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
End Of Tool Shape Ball Nose
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.2500 57.15MM
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
