  • YG-1 56270CN DIA 11/64 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

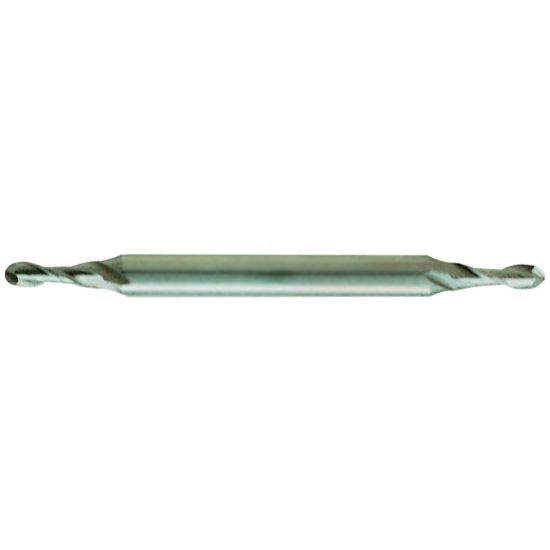

Picture of YG-1 56270CN DIA 11/64 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 56270CN DIA 11/64 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56270CN
Delivery date: 3-5 days
$28.41

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Ball Milling, Ball Slot Milling, Copy Milling
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.1719 4.36MM - 11/64
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Length Type Standard
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
