  • YG-1 56270 DIA 11/64 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

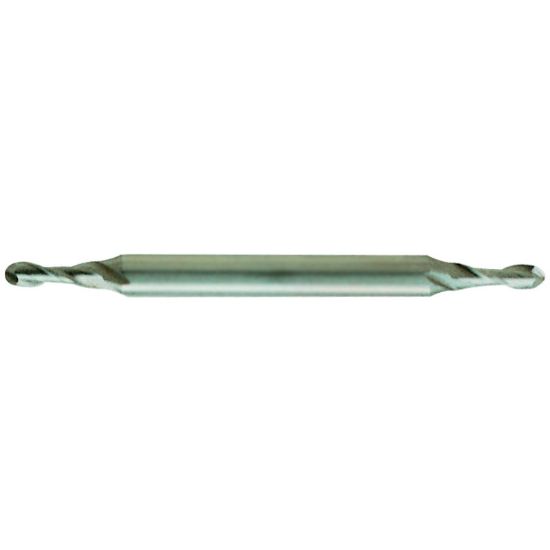

Picture of YG-1 56270 DIA 11/64 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 56270 DIA 11/64 SH 0.1875 LOC 0.50 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56270
Delivery date: 3-5 days
$22.31

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Copy Milling, Profile Milling, Ball Milling, Side Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Of Cut 0.5000 12.70MM
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.1719 4.36MM - 11/64
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
