  • YG-1 56268CN DIA 5/32 SH 0.1875 LOC 0.4375 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

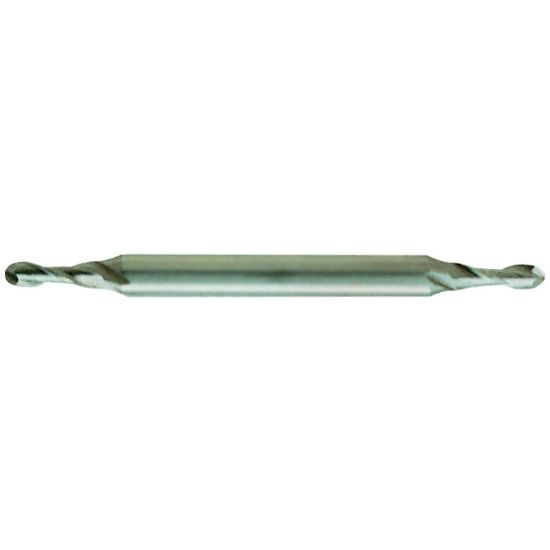

Picture of YG-1 56268CN DIA 5/32 SH 0.1875 LOC 0.4375 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 56268CN DIA 5/32 SH 0.1875 LOC 0.4375 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56268CN
Delivery date: 3-5 days
$24.77

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Coating TiN
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Type Standard
Cutter Style Cobalt Miniature Ball
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Helix Angle 30°
Length Of Cut 0.4375 11.11MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.1875 4.76MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Mold Yes
Job Shop Yes
