  • YG-1 56264 DIA 1/8 SH 0.1875 LOC 0.3750 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

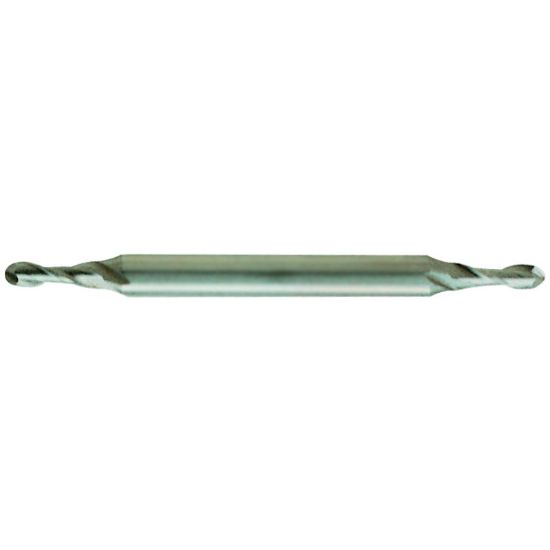

Picture of YG-1 56264 DIA 1/8 SH 0.1875 LOC 0.3750 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 56264 DIA 1/8 SH 0.1875 LOC 0.3750 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56264
Delivery date: 3-5 days
$18.59

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.2500 57.15MM
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Single/Double End Double End
Tool Material Cobalt
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
