  • YG-1 56262 DIA 7/64 SH 0.1875 LOC 0.3281 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

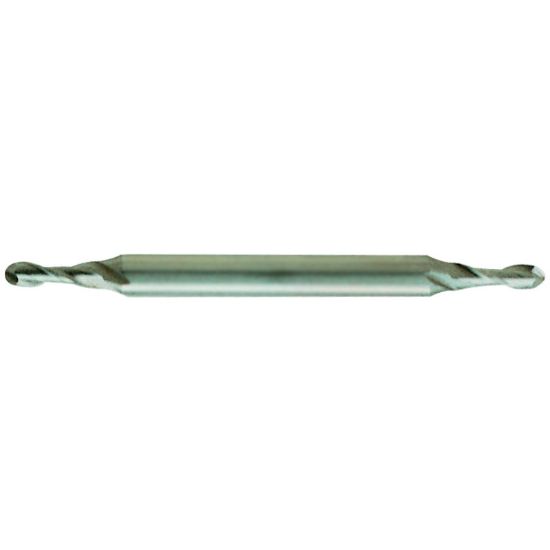

Picture of YG-1 56262 DIA 7/64 SH 0.1875 LOC 0.3281 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 56262 DIA 7/64 SH 0.1875 LOC 0.3281 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56262
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Ball Slot Milling, Side Milling, Copy Milling, Profile Milling, Ball Milling
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.1094 2.78MM - 7/64
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.2500 57.15MM
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Length Of Cut 0.3281 8.33MM
Inch/Metric Inch
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
