  • YG-1 56260CN DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

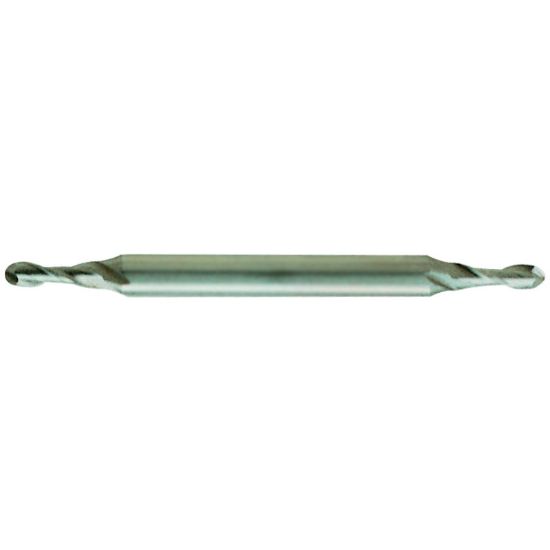

Picture of YG-1 56260CN DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 56260CN DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56260CN
Delivery date: 3-5 days
$27.36

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Copy Milling, Ball Milling, Ball Slot Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Length Of Cut 0.2813 7.15MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Cutter Dia 0.0938 2.38MM - 3/32
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
