  • YG-1 56254 DIA 3/64 SH 0.1875 LOC 0.1406 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

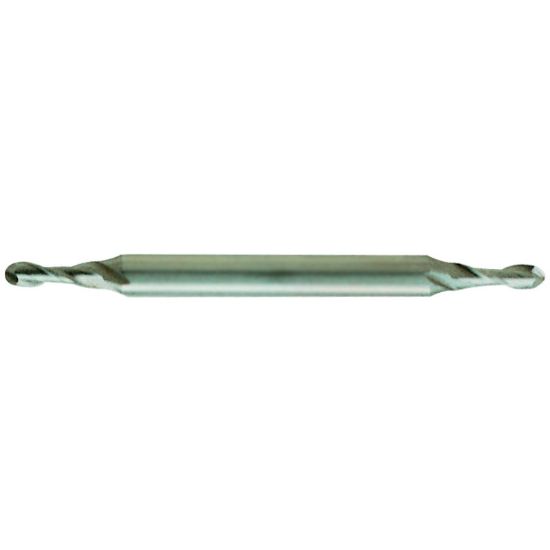

Picture of YG-1 56254 DIA 3/64 SH 0.1875 LOC 0.1406 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 56254 DIA 3/64 SH 0.1875 LOC 0.1406 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56254
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.2500 57.15MM
Flutes/Inserts 2
Length Of Cut 0.1406 3.57MM
Cutter Style Cobalt Miniature Ball
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Machine Side Connection Type Weldon
Single/Double End Double End
End Of Tool Shape Ball Nose
Cutter Dia 0.0469 1.19MM - 3/64
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Inch/Metric Inch
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
