  • YG-1 55268 DIA 5/32 SH 0.1875 LOC 0.2343 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

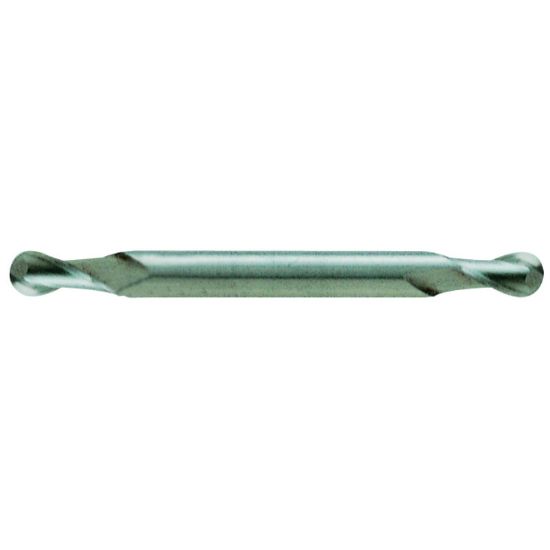

Picture of YG-1 55268 DIA 5/32 SH 0.1875 LOC 0.2343 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 55268 DIA 5/32 SH 0.1875 LOC 0.2343 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-55268
Delivery date: 3-5 days
$18.29

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Length Type Stub
Helix Angle 30°
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
End Of Tool Shape Ball Nose
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Length Of Cut 0.2343 5.95MM
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Machine Side Connection Type Weldon
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
