  • YG-1 55264CN DIA 1/8 SH 0.1875 LOC 0.1875 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

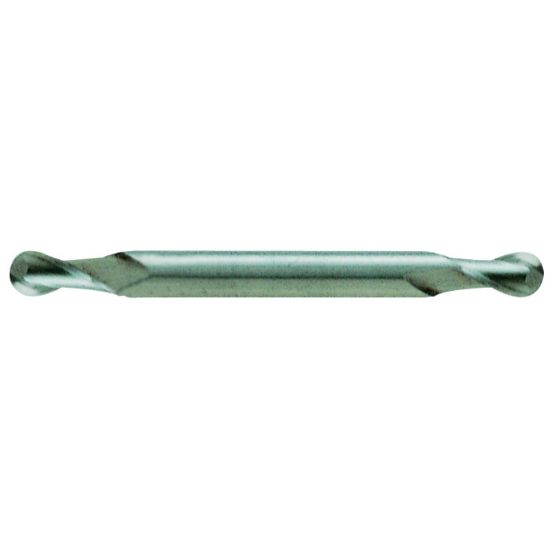

Picture of YG-1 55264CN DIA 1/8 SH 0.1875 LOC 0.1875 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 55264CN DIA 1/8 SH 0.1875 LOC 0.1875 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-55264CN
Delivery date: 3-5 days
$23.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Side Milling, Ball Milling, Profile Milling, Copy Milling
Coating TiN
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Of Cut 0.1875 4.76MM
Cutter Style Cobalt Miniature Ball
Length Type Stub
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Inch/Metric Inch
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
