  • YG-1 55260CN DIA 3/32 SH 0.1875 LOC 0.1406 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

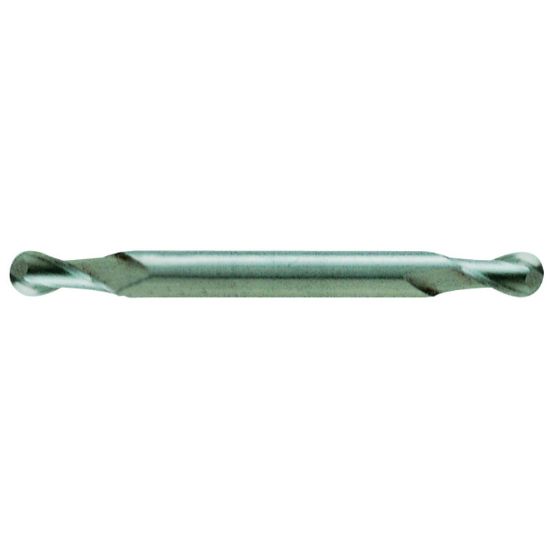

Picture of YG-1 55260CN DIA 3/32 SH 0.1875 LOC 0.1406 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 55260CN DIA 3/32 SH 0.1875 LOC 0.1406 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-55260CN
Delivery date: 3-5 days
$25.88

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Made In USA No
Shipping State Illinois
Coating TiN
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutter Dia 0.0938 2.38MM - 3/32
Overall Len 2.0000 50.80MM
Inch/Metric Inch
Length Type Stub
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 0.1406 3.57MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
