  • YG-1 55256CN DIA 1/16 SH 0.1875 LOC 0.0937 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

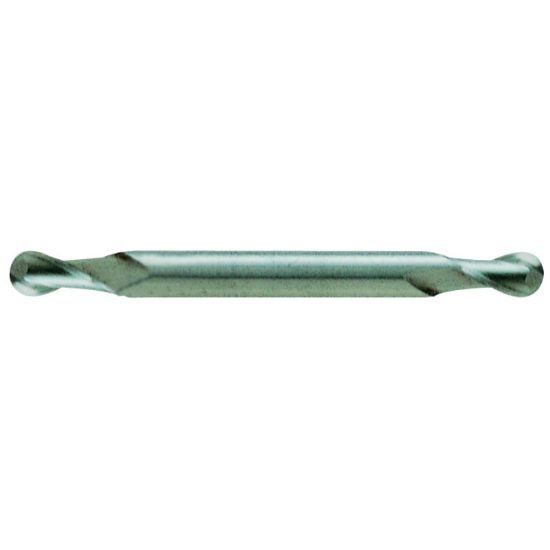

Picture of YG-1 55256CN DIA 1/16 SH 0.1875 LOC 0.0937 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 55256CN DIA 1/16 SH 0.1875 LOC 0.0937 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-55256CN
Delivery date: 3-5 days
$25.88

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling, Side Milling
Coating TiN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Stub
Cutter Dia 0.0625 1.59MM - 1/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Length Of Cut 0.0938 2.38MM
Helix Angle 30°
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
