  • YG-1 55256 DIA 1/16 SH 0.1875 LOC 0.0937 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

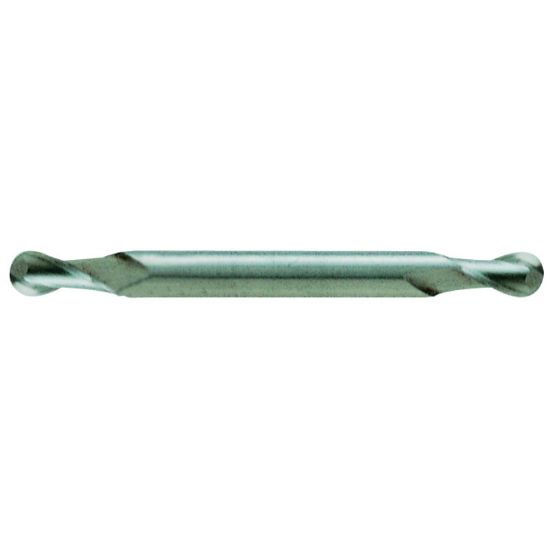

Picture of YG-1 55256 DIA 1/16 SH 0.1875 LOC 0.0937 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 55256 DIA 1/16 SH 0.1875 LOC 0.0937 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-55256
Delivery date: 3-5 days
$20.91

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Length Of Cut 0.0938 2.38MM
Helix Angle 30°
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Length Type Stub
Cutter Dia 0.0625 1.59MM - 1/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
