  • YG-1 54272CN DIA 3/16 SH 0.1875 LOC 1.00 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

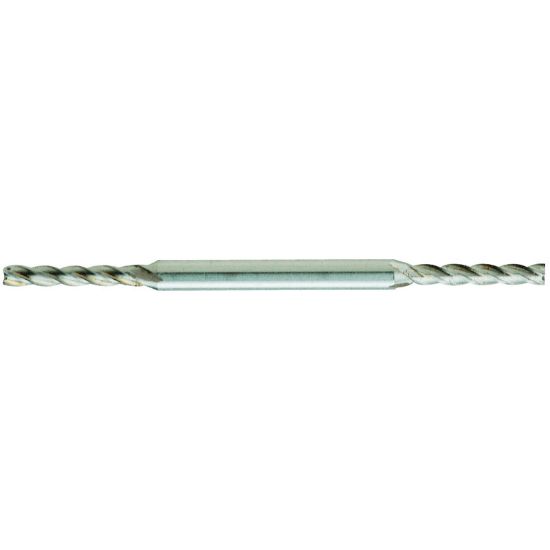

Picture of YG-1 54272CN DIA 3/16 SH 0.1875 LOC 1.00 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 54272CN DIA 3/16 SH 0.1875 LOC 1.00 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-54272CN
Delivery date: 3-5 days
$19.93

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side Connection Type Weldon
Overall Len 3.3750 85.73MM
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Neck Length 1.0000 25.40MM
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
