  • YG-1 54266CN DIA 9/64 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

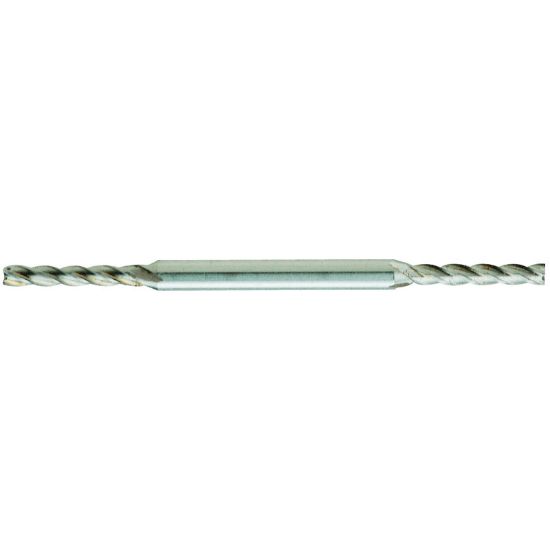

Picture of YG-1 54266CN DIA 9/64 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 54266CN DIA 9/64 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-54266CN
Delivery date: 3-5 days
$19.93

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Coating TiN
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Overall Len 3.1250 79.38MM
Machine Side Connection Size 0.1875 4.76MM
Tool Material Cobalt
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
