  • YG-1 54262CN DIA 7/64 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

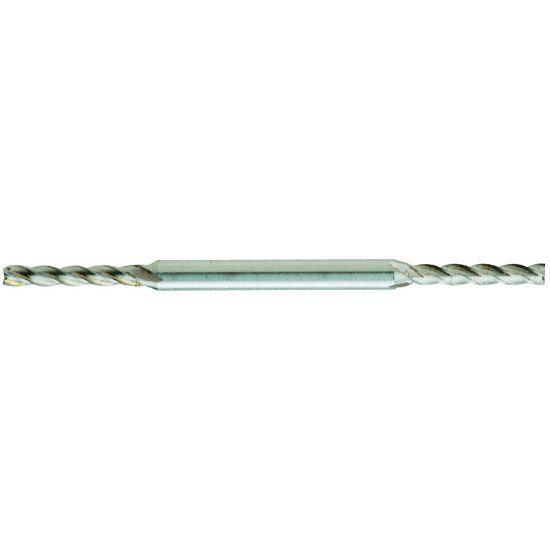

Picture of YG-1 54262CN DIA 7/64 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 54262CN DIA 7/64 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-54262CN
Delivery date: 3-5 days
$18.41

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Coating TiN
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Of Cut 0.2813 7.15MM
Inch/Metric Inch
Overall Len 2.6250 66.68MM
Machine Side Connection Size 0.1875 4.76MM
Neck Length 0.5000 12.70MM
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Cutter Dia 0.1094 2.78MM - 7/64
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
