  • YG-1 54260 DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

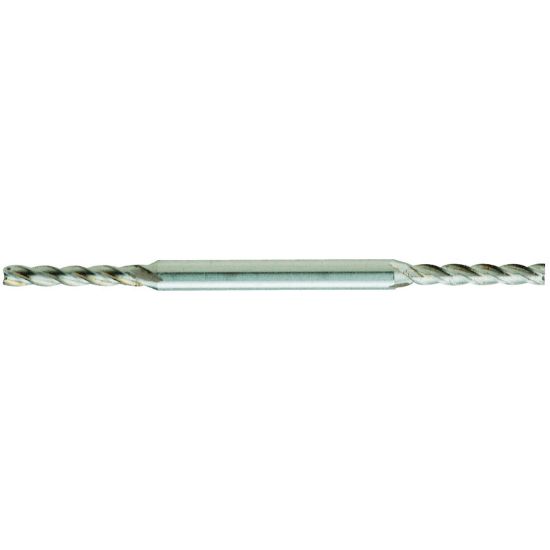

Picture of YG-1 54260 DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 54260 DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-54260
Delivery date: 3-5 days
$11.91

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Machine Side Connection Size 0.1875 4.76MM
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Neck Length 0.5000 12.70MM
Machine Side Connection Type Weldon
Overall Len 2.6250 66.68MM
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Inch/Metric Inch
Single/Double End Double End
Cutter Dia 0.0938 2.38MM - 3/32
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
