  • YG-1 54256CN DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

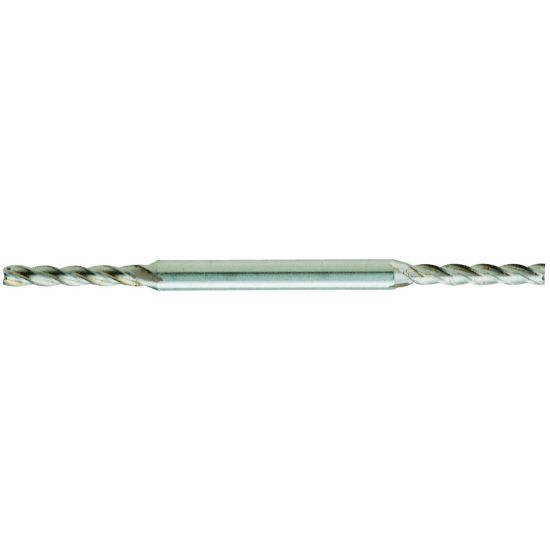

Picture of YG-1 54256CN DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 54256CN DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-54256CN
Delivery date: 3-5 days
$18.41

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Length Of Cut 0.2188 5.56MM
Helix Angle 30°
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Neck Length 0.3750 9.53MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Cutter Dia 0.0625 1.59MM - 1/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Machine Side Connection Size 0.1875 4.76MM
Tool Material Cobalt
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
