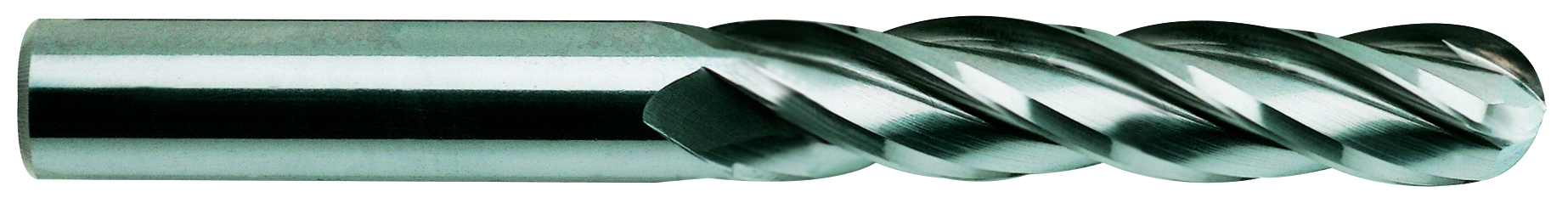

Picture of YG-1 53584TD Dia 3/8 SH 0.3750 LOC 1.7500 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Carbide EndMillS

YG-1 53584TD Dia 3/8 SH 0.3750 LOC 1.7500 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Carbide EndMillS

Part Number: YG-53584TD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1210948
Vendor: Sussex Tool and Supply
$86.06
YG-1 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 4 Single End CARBIDE ENDMILLS Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.3750 9.53MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Type Extra Long
Performance Rating General Performance
Length Of Cut 1.7500 44.45MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
