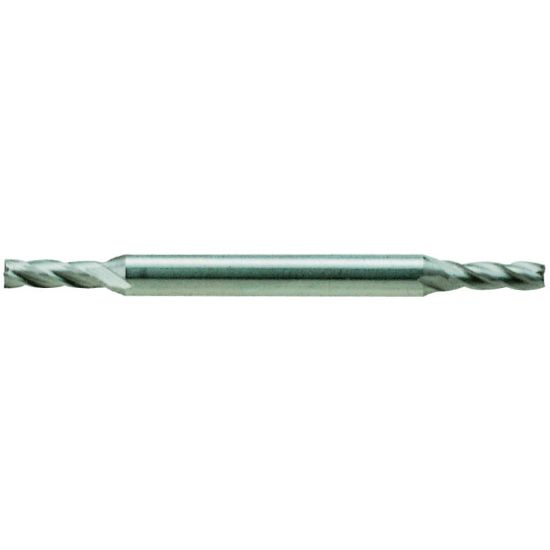

YG-1 53256CN DIA 1/16 SH 0.1875 LOC 0.1875 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-53256CN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Package Size 1
Coating TiN
Performance Rating General Performance
Dimensional Specifications
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Cutter Dia 0.0625 1.59MM - 1/16
Length Type Standard
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Length Of Cut 0.1875 4.76MM
Machine Side Connection Size 0.1875 4.76MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
