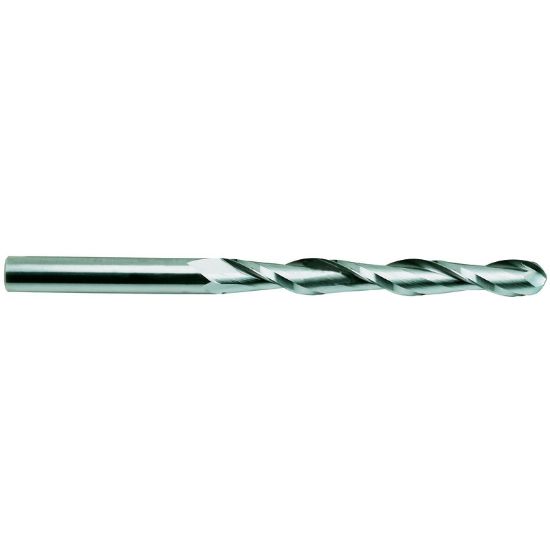

YG-1 52593 DIA 1/2 SH 0.50 LOC 3.00 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-52593
Delivery date: 3-5 days
$84.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 6.0000 152.40MM
Helix Angle 30°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Extra Long
Flutes/Inserts 2
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
