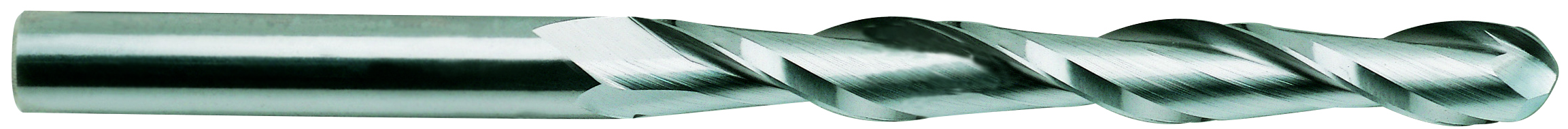

Picture of YG-1 52588TC Dia 7/16 SH 0.4375 LOC 3.00 OAL6.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall Carbide EndMillS

YG-1 52588TC Dia 7/16 SH 0.4375 LOC 3.00 OAL6.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall Carbide EndMillS

Part Number: YG-52588TC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1210879
Vendor: Sussex Tool and Supply
$101.27
YG-1 Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 2 Single End CARBIDE ENDMILLS Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Length Type Extra Long
Performance Rating General Performance
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
