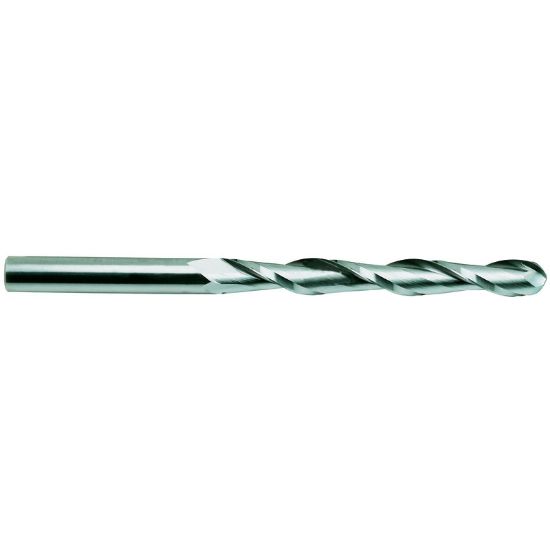

YG-1 52565 DIA 3/16 SH 0.1875 LOC 1.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-52565
Delivery date: 3-5 days
$21.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Ball Milling, Side Milling, Ball Slot Milling, Copy Milling, Profile Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.1875 4.76MM
Overall Len 3.0000 76.20MM
Helix Angle 30°
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Of Cut 1.1250 28.58MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Extra Long
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Style Carbide Ball Finisher
Single/Double End Single End
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
