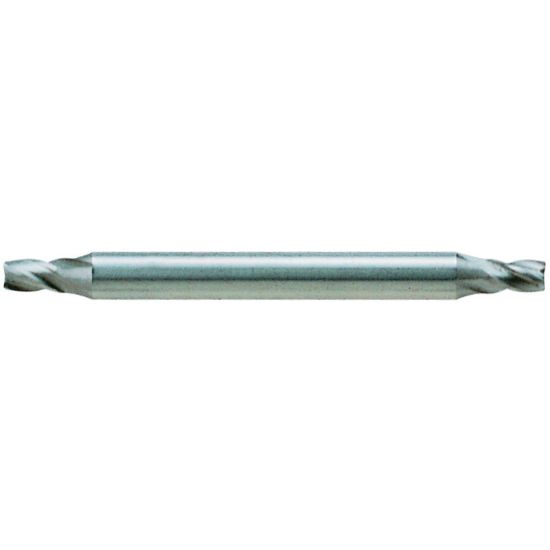

YG-1 52262CF DIA 7/64 SH 0.1875 LOC 0.1563 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiAlN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-52262CF
Delivery date: 3-5 days
$17.05

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling
Performance Rating General Performance
Package Size 1
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Cutter Style Cobalt Miniature
Tool Material Cobalt
Length Of Cut 0.1563 3.97MM
Cutter Dia 0.1094 2.78MM - 7/64
End Of Tool Shape Square
Length Type Stub
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.1875 4.76MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
