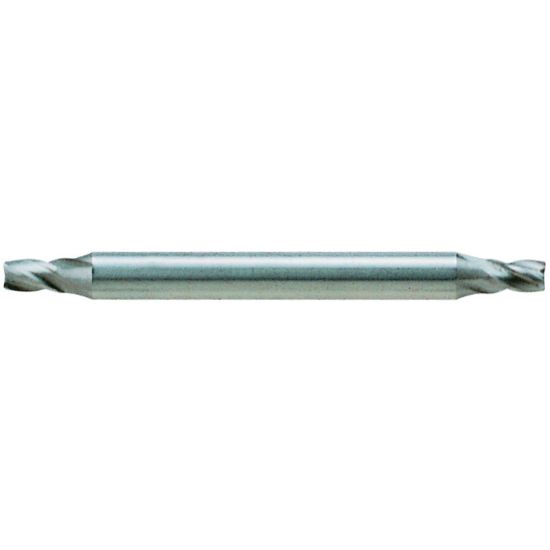

YG-1 52258CF DIA 5/64 SH 0.1875 LOC 0.1250 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiAlN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-52258CF
Delivery date: 3-5 days
$17.05

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating TiAlN
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Overall Len 2.0000 50.80MM
Length Type Stub
Cutter Dia 0.0781 1.98MM - 5/64
Length Of Cut 0.1250 3.18MM
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
