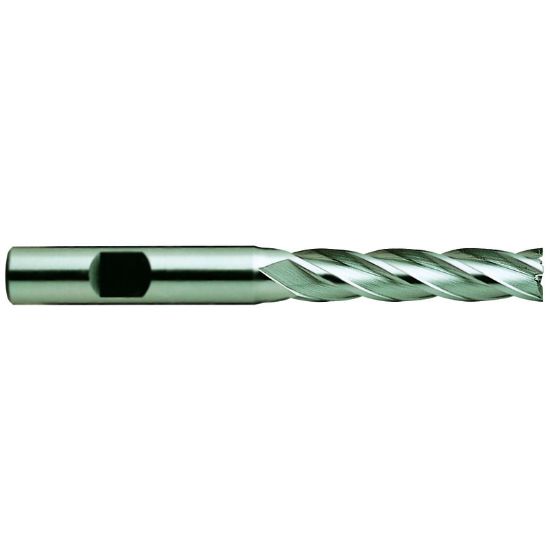

YG-1 5220 DIA 1-3/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-05220
Delivery date: 3-5 days
$134.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Inch/Metric Inch
Cutter Dia 1.7500 44.45MM - 1-3/4
Length Of Cut 4.0000 101.60MM
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Machine Side Connection Type Weldon
Flutes/Inserts 6
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
