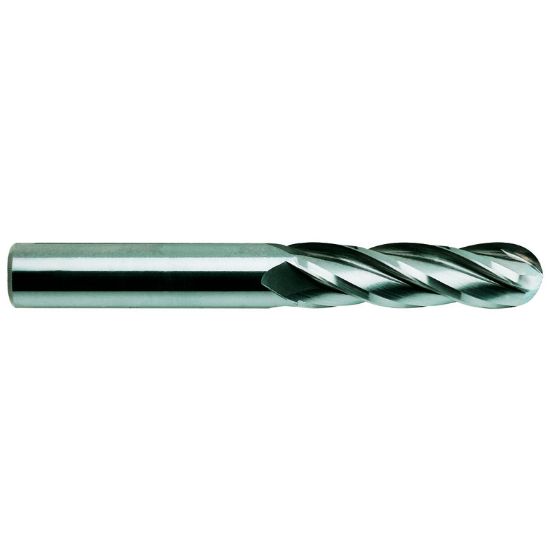

YG-1 51573 DIA 1/4 SH 0.2500 LOC 1.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-51573
Delivery date: 3-5 days
$22.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Ball Milling, Copy Milling, Ball Slot Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Length Of Cut 1.1250 28.58MM
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Length Type Long
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
