  • YG-1 51268CN DIA 5/32 SH 0.1875 LOC 0.8750 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

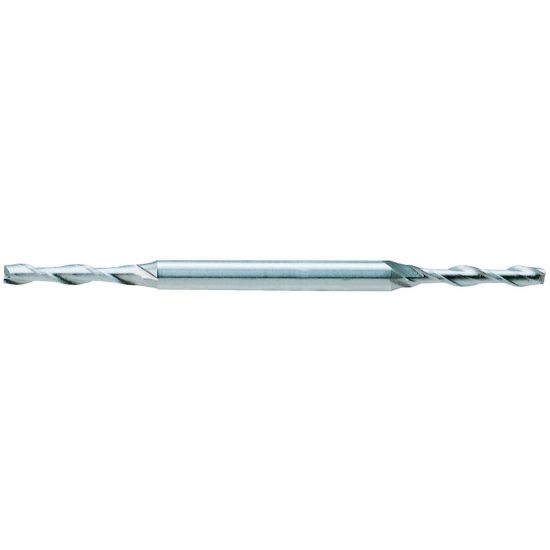

Picture of YG-1 51268CN DIA 5/32 SH 0.1875 LOC 0.8750 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 51268CN DIA 5/32 SH 0.1875 LOC 0.8750 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-51268CN
Delivery date: 3-5 days
$19.93

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 3.2500 82.55MM
Length Of Cut 0.8750 22.23MM
Helix Angle 30°
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.1875 4.76MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Medical Yes
Mold Yes
Job Shop Yes
