  • YG-1 51266CN DIA 9/64 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

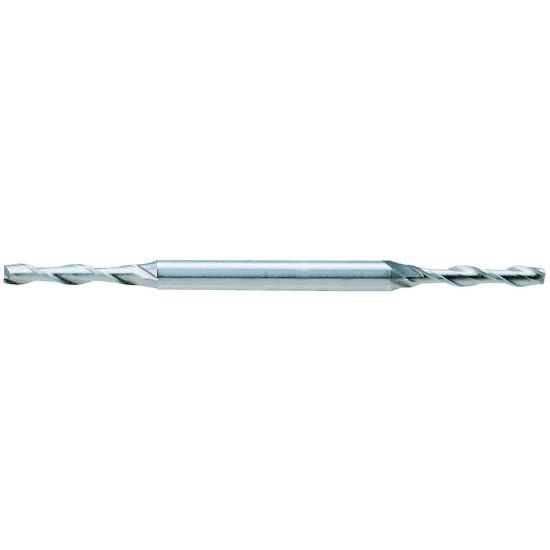

Picture of YG-1 51266CN DIA 9/64 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 51266CN DIA 9/64 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-51266CN
Delivery date: 3-5 days
$19.93

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
End Of Tool Shape Square
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Overall Len 3.1250 79.38MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 0.7500 19.05MM
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
