  • YG-1 51264 DIA 1/8 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

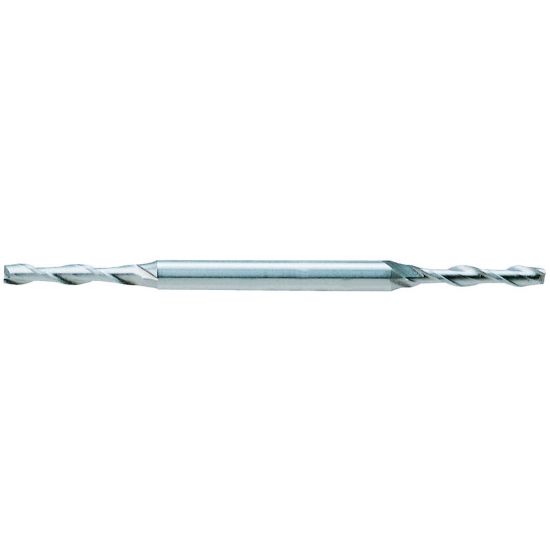

Picture of YG-1 51264 DIA 1/8 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 51264 DIA 1/8 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-51264
Delivery date: 3-5 days
$12.68

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Side Milling, Face Milling
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Length Of Cut 0.7500 19.05MM
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.1250 79.38MM
Helix Angle 30°
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Tool Material Cobalt
End Of Tool Shape Square
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
