  • YG-1 51260CN DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

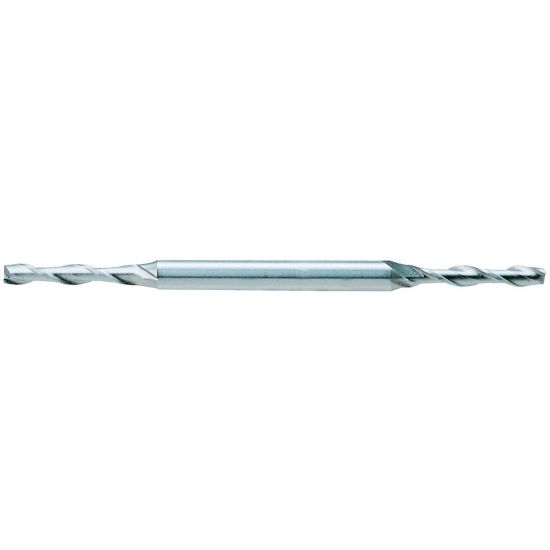

Picture of YG-1 51260CN DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 51260CN DIA 3/32 SH 0.1875 LOC 0.2812 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-51260CN
Delivery date: 3-5 days
$18.41

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Neck Length 0.5000 12.70MM
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Dia 0.0938 2.38MM - 3/32
Overall Len 2.6250 66.68MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
