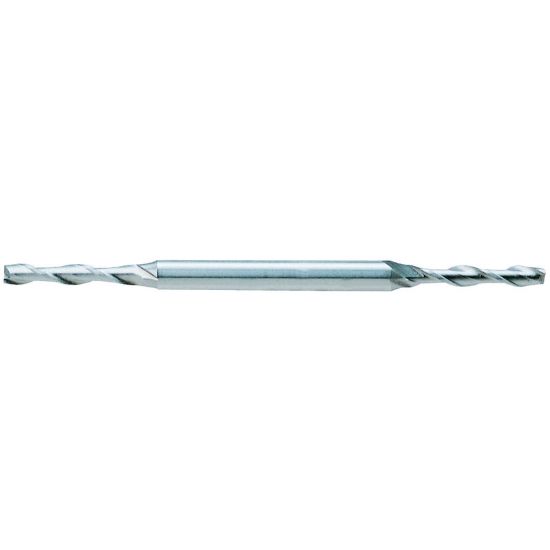

Picture of YG-1 51258 DIA 5/64 SH 0.1875 LOC 0.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 51258 DIA 5/64 SH 0.1875 LOC 0.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-51258
Delivery date: 3-5 days
$11.91

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.1875 4.76MM
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Length Type Long / With Neck
Cutter Style Cobalt Miniature
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 2.5000 63.50MM
Cutter Dia 0.0781 1.98MM - 5/64
Inch/Metric Inch
Single/Double End Double End
Neck Length 0.3750 9.53MM
Machine Side Connection Type Weldon
Helix Angle 30°
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
