  • YG-1 50254CN DIA 3/64 SH 0.1875 LOC 0.1406 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

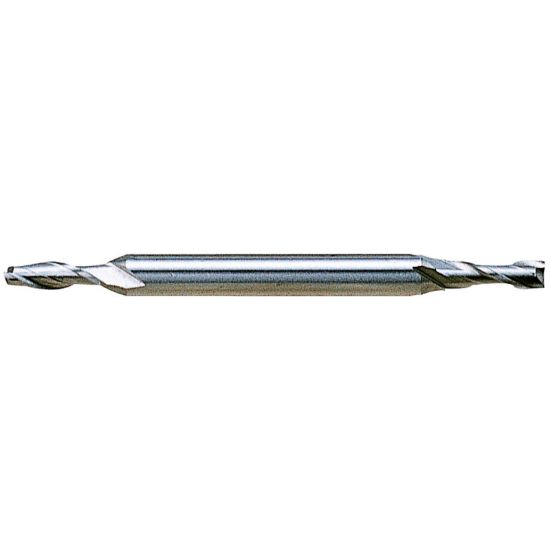

Picture of YG-1 50254CN DIA 3/64 SH 0.1875 LOC 0.1406 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 50254CN DIA 3/64 SH 0.1875 LOC 0.1406 OAL 2.2500 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-50254CN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Cutter Style Cobalt Miniature
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cutter Dia 0.0469 1.19MM - 3/64
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Type Standard
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Length Of Cut 0.1406 3.57MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Mold Yes
Job Shop Yes
Medical Yes
