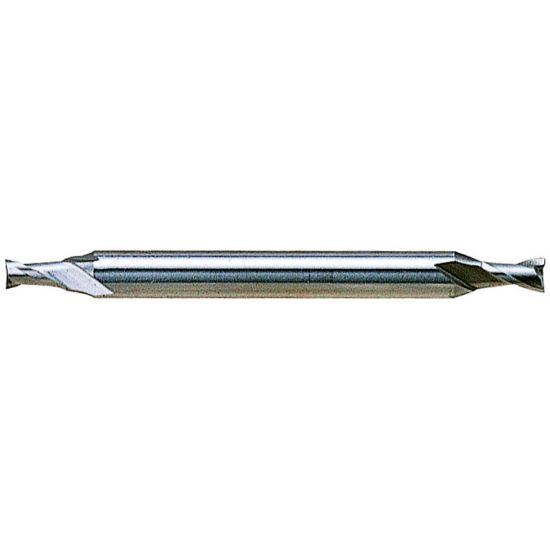

YG-1 49264CC DIA 1/8 SH 0.1875 LOC 0.1875 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-49264CC
Delivery date: 3-5 days
$17.05

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Coating TiCN
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cutter Style Cobalt Miniature
Length Type Stub
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 0.1875 4.76MM
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Mold Yes
Medical Yes
Job Shop Yes
