  • YG-1 49262CN DIA 7/64 SH 0.1875 LOC 0.1563 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

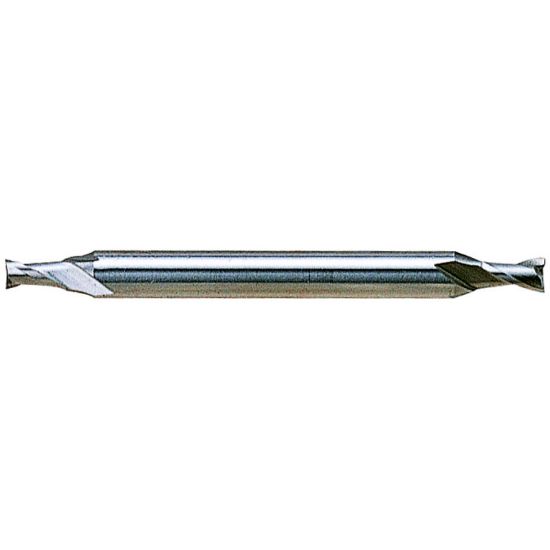

Picture of YG-1 49262CN DIA 7/64 SH 0.1875 LOC 0.1563 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 49262CN DIA 7/64 SH 0.1875 LOC 0.1563 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-49262CN
Delivery date: 3-5 days
$16.08

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Coating TiN
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1094 2.78MM - 7/64
Inch/Metric Inch
Length Of Cut 0.1563 3.97MM
Length Type Stub
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
