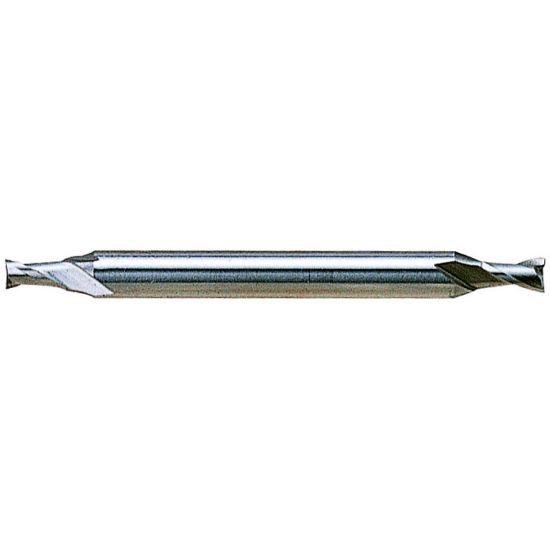

YG-1 49258CC DIA 5/64 SH 0.1875 LOC 0.1250 OAL 2.00 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-49258CC
Delivery date: 3-5 days
$17.05

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiCN
Dimensional Specifications
Length Type Stub
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Dia 0.0781 1.98MM - 5/64
Length Of Cut 0.1250 3.18MM
Inch/Metric Inch
Overall Len 2.0000 50.80MM
End Of Tool Shape Square
Cutter Style Cobalt Miniature
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Machine Side Connection Size 0.1875 4.76MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
