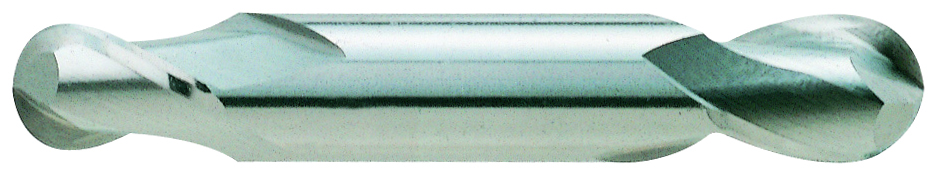

Picture of YG-1 48593 Dia 1/2 SH 0.50 LOC 0.6250 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball NoseBall Carbide EndMillS

YG-1 48593 Dia 1/2 SH 0.50 LOC 0.6250 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Ball NoseBall Carbide EndMillS

Part Number: YG-48593

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1210746
Vendor: Sussex Tool and Supply
$83.96
YG-1 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 4 Double End CARBIDE ENDMILLS Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Type Stub
Performance Rating General Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
