  • YG-1 46426 DIA 1 SH 1.00 LOC 1.8750 OAL 6.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

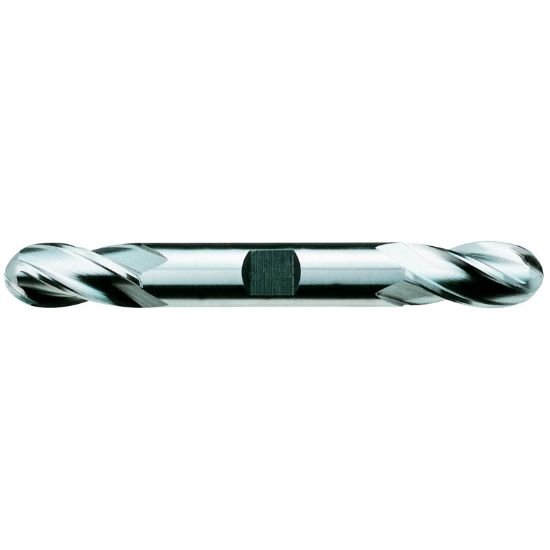

Picture of YG-1 46426 DIA 1 SH 1.00 LOC 1.8750 OAL 6.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 46426 DIA 1 SH 1.00 LOC 1.8750 OAL 6.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46426
Delivery date: 3-5 days
$134.92

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Milling, Copy Milling, Ball Slot Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Tool Material Cobalt
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Overall Len 6.3750 161.93MM
End Of Tool Shape Ball Nose
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
