  • YG-1 46359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

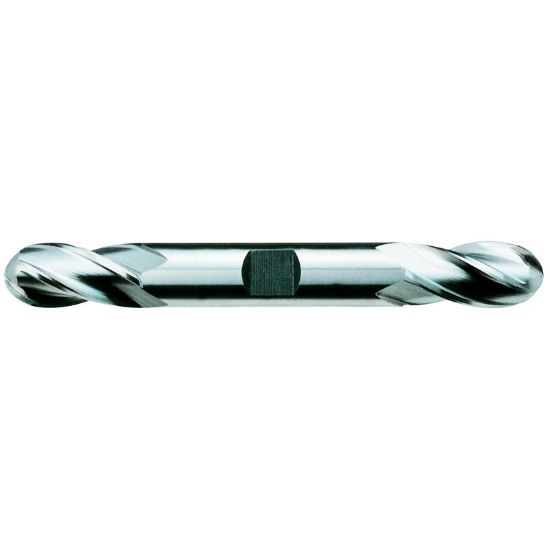

Picture of YG-1 46359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 46359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46359CN
Delivery date: 3-5 days
$120.83

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Copy Milling, Ball Milling, Ball Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.6250 142.88MM
Machine Side Connection Type Weldon
Helix Angle 30°
Length Type Standard
Inch/Metric Inch
Single/Double End Double End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
Cutter Style Cobalt Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
