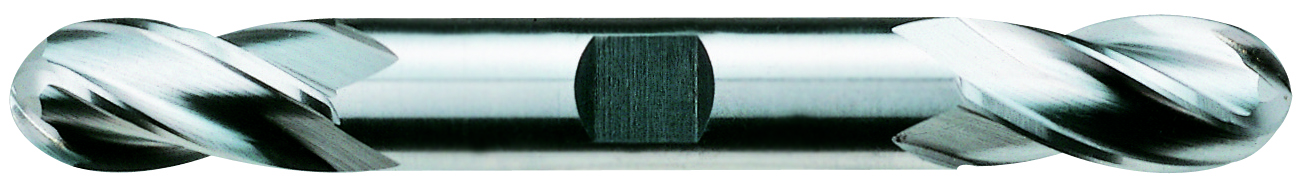

Picture of YG-1 46359CC Dia 3/4 SH 0.7500 LOC 1.6250 OAL5.6250 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball NoseBall General Purpose

YG-1 46359CC Dia 3/4 SH 0.7500 LOC 1.6250 OAL5.6250 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball NoseBall General Purpose

Part Number: YG-46359CC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1202593
Vendor: Sussex Tool and Supply
$142.07
YG-1 Standard Helix End Mill Cobalt TiCN Ball Nose Ball Standard Flute Flutes 4 Double End GENERAL Purpose Cobalt Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 5.6250 142.88MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
