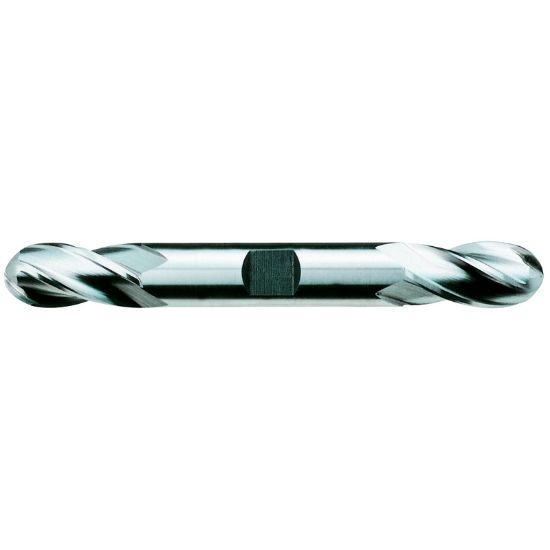

Picture of YG-1 46337 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 46337 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46337
Delivery date: 3-5 days
$79.52

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Style Cobalt Ball Finisher
Length Of Cut 1.3750 34.93MM
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 5.0000 127.00MM
Helix Angle 30°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
