  • YG-1 46313CN DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

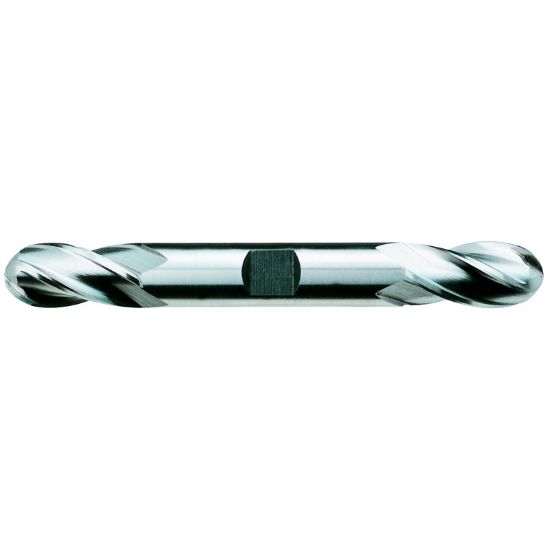

Picture of YG-1 46313CN DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 46313CN DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46313CN
Delivery date: 3-5 days
$73.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Ball Slot Milling, Profile Milling, Copy Milling, Side Milling, Ball Milling
Coating TiN
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
End Of Tool Shape Ball Nose
Cutter Dia 0.4375 11.11MM - 7/16
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
