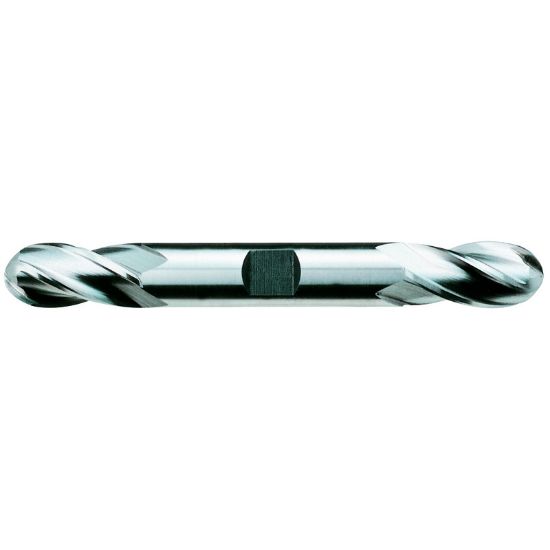

YG-1 46313CE DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiAlN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46313CE
Delivery date: 3-5 days
$82.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Copy Milling, Ball Milling, Ball Slot Milling
Performance Rating General Performance
Package Size 1
Coating TiAlN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Single/Double End Double End
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Dia 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
