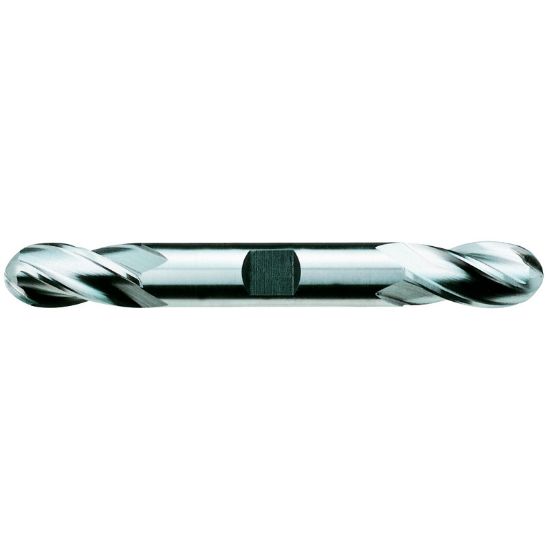

YG-1 46313CC DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46313CC
Delivery date: 3-5 days
$79.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Single/Double End Double End
Cutter Style Cobalt Ball Finisher
Cutter Dia 0.4375 11.11MM - 7/16
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
