  • YG-1 46313 DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

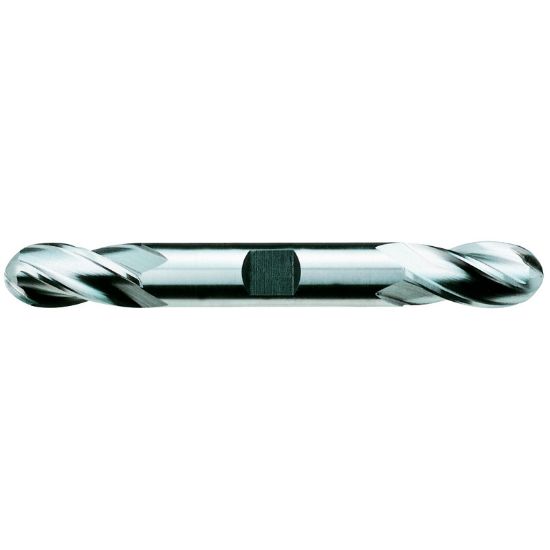

Picture of YG-1 46313 DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 46313 DIA 7/16 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46313
Delivery date: 3-5 days
$55.37

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Single/Double End Double End
Cutter Dia 0.4375 11.11MM - 7/16
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Type Standard
Helix Angle 30°
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
