  • YG-1 46301CN DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

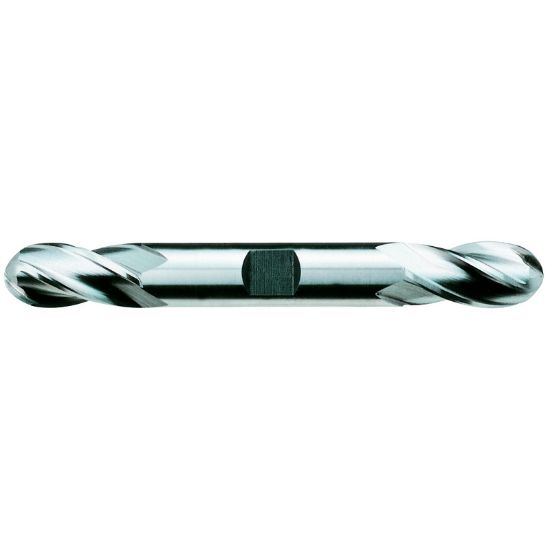

Picture of YG-1 46301CN DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 46301CN DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46301CN
Delivery date: 3-5 days
$52.37

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Ball Slot Milling, Copy Milling, Ball Milling
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Inch/Metric Inch
End Of Tool Shape Ball Nose
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
