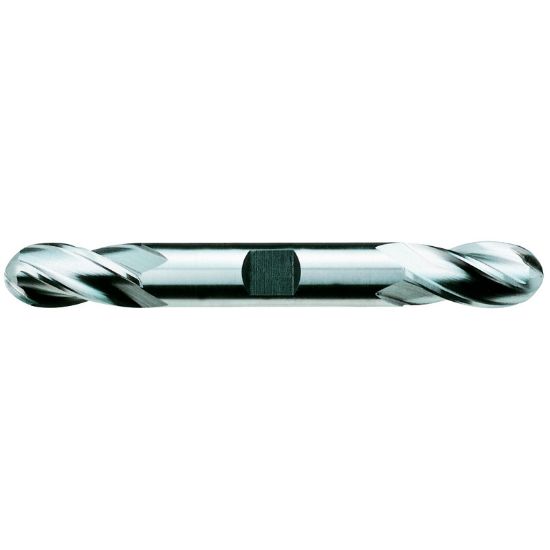

YG-1 46301CC DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46301CC
Delivery date: 3-5 days
$56.57

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiCN
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cutter Dia 0.3125 7.94MM - 5/16
Overall Len 3.5000 88.90MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Tool Material Cobalt
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
